Chassis Technical Breakdown

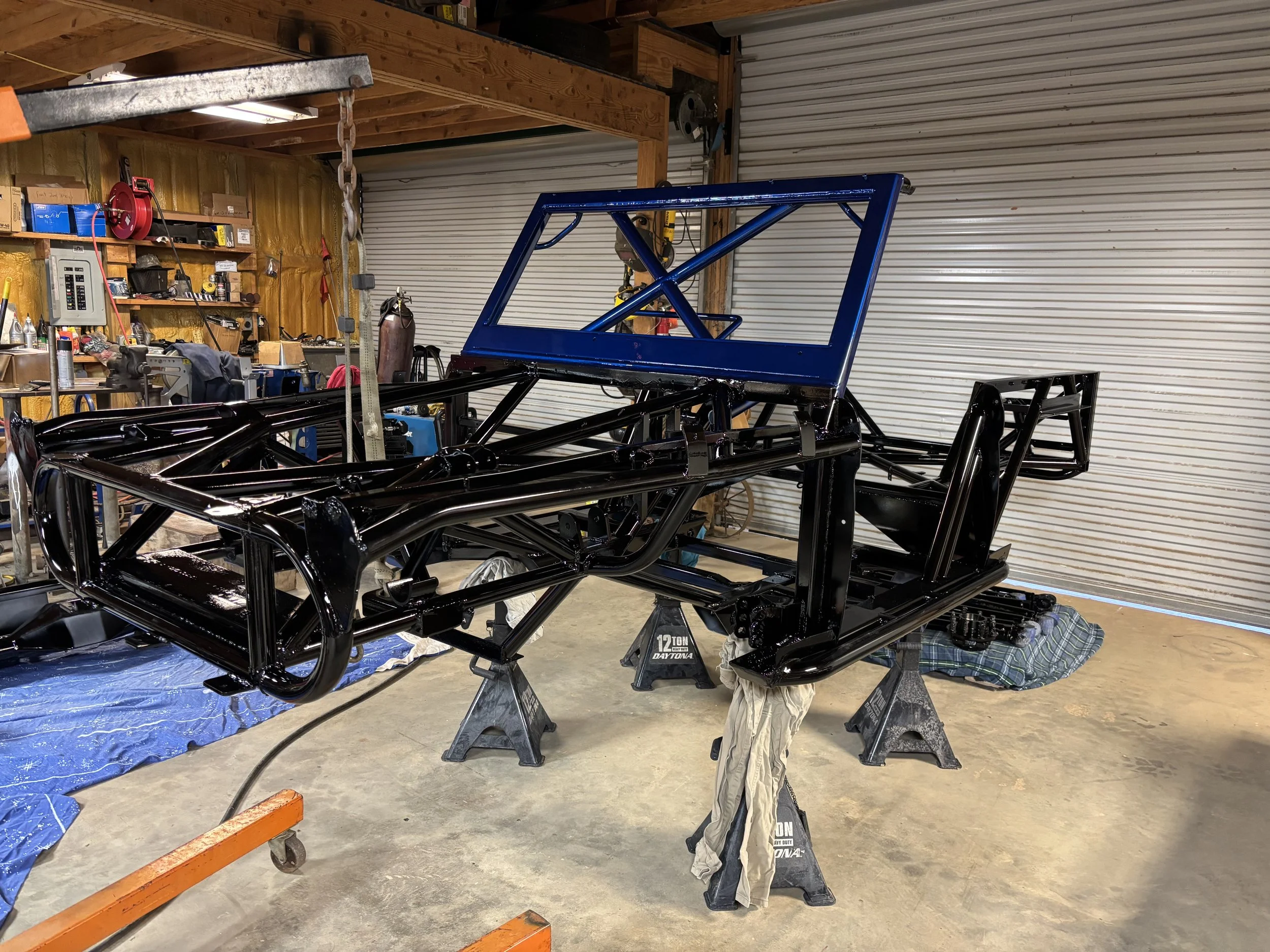

CHASSIS STRUCTURE
.120 WALL DOM CONSTRUCTION

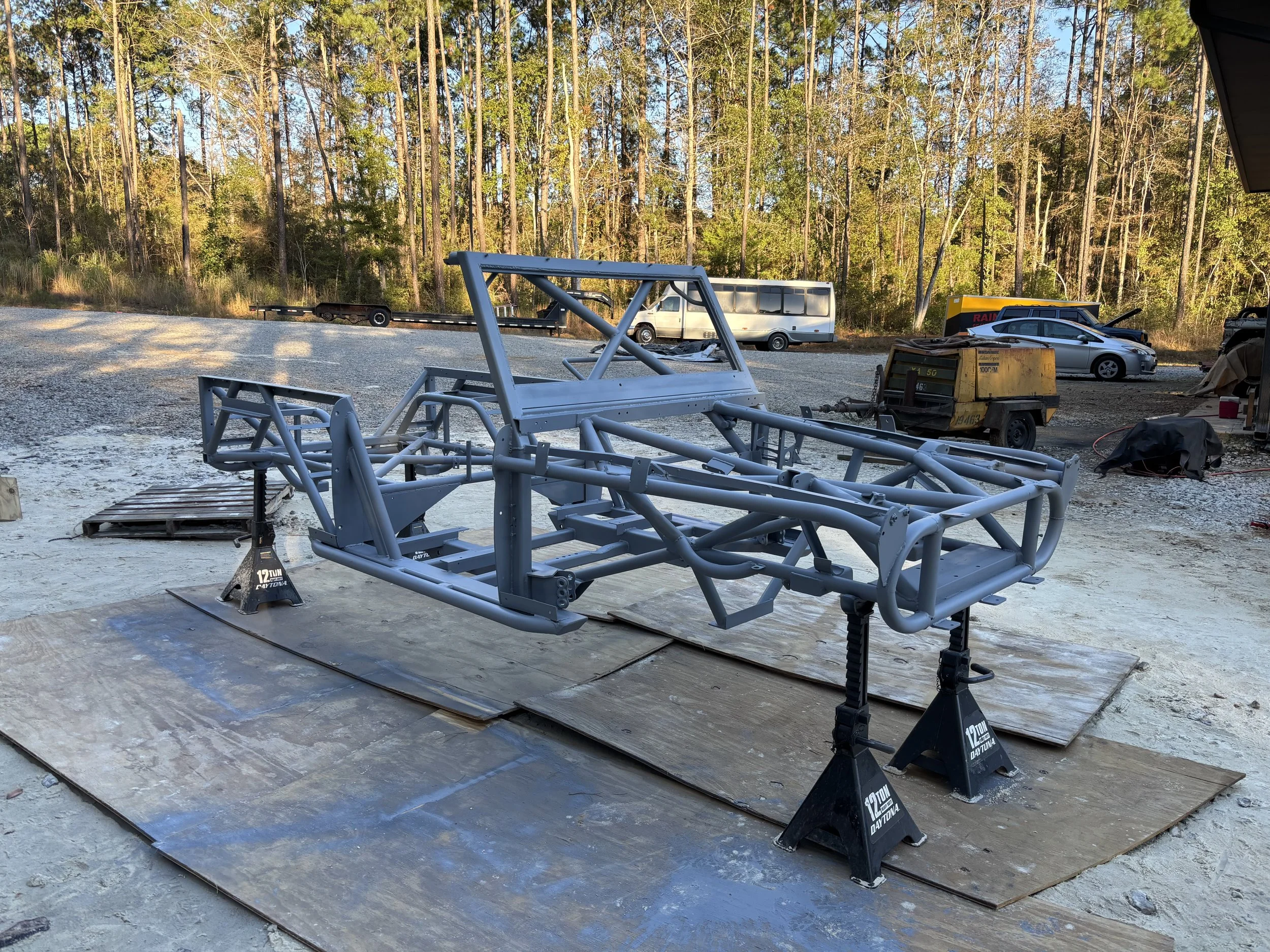

.120 Wall DOM Construction
The entire chassis and roll cage structure are constructed from .120 wall DOM tubing.
DOM tubing was selected for its superior strength, consistency, and durability while maintaining a reasonable overall vehicle weight.
Benefits include:
- Exceptional structural strength
- Improved impact resistance
- Increased durability
- Integrated occupant protection
The chassis serves as both the vehicle structure and roll cage system.
SUSPENSION INTEGRATION

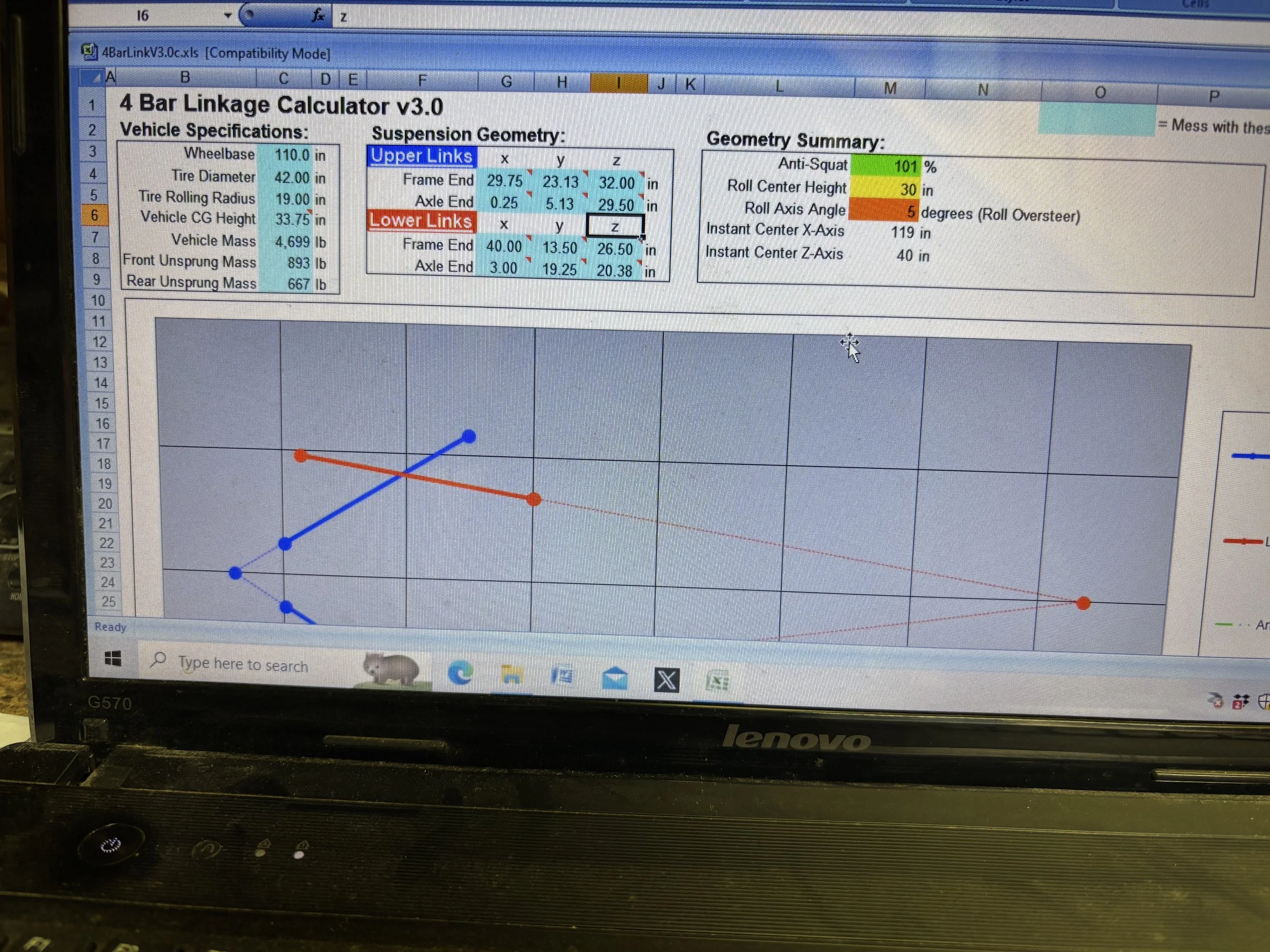

PURPOSE-BUILT SUSPENSION MOUNTING

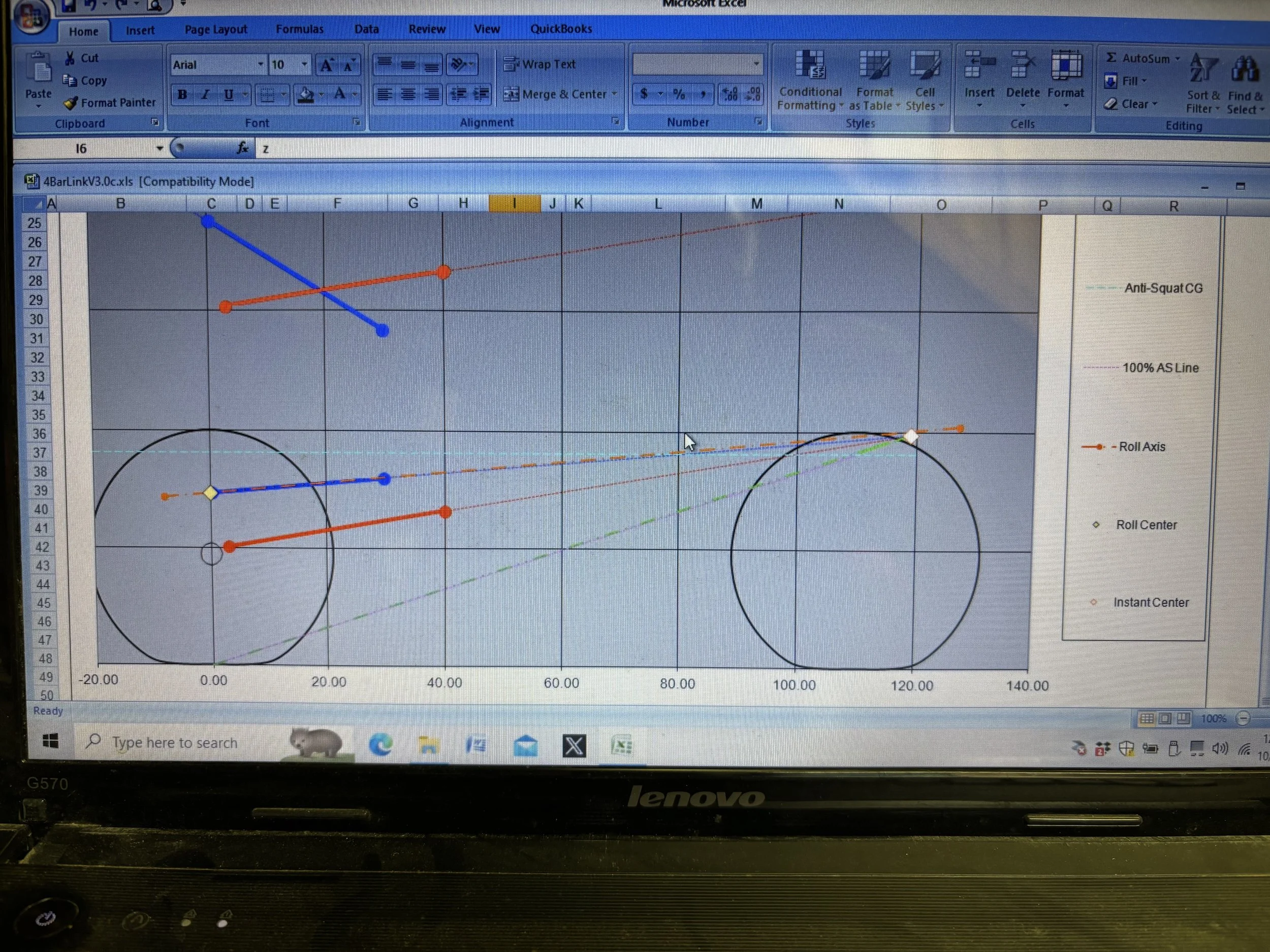

Purpose-Built Suspension Mounting
One of the greatest advantages of building a chassis from scratch is the ability to position suspension mounting points exactly where they are needed.
Rather than adapting the suspension to fit a factory frame, the frame was designed around the suspension.
Benefits include:
- Optimized anti-squat geometry
- Optimized anti-dive geometry
- Improved climbing performance
- Enhanced stability
- Greater suspension tuning flexibility
This approach allows the suspension to perform exactly as intended.
WINDSHIELD FRAME DESIGN

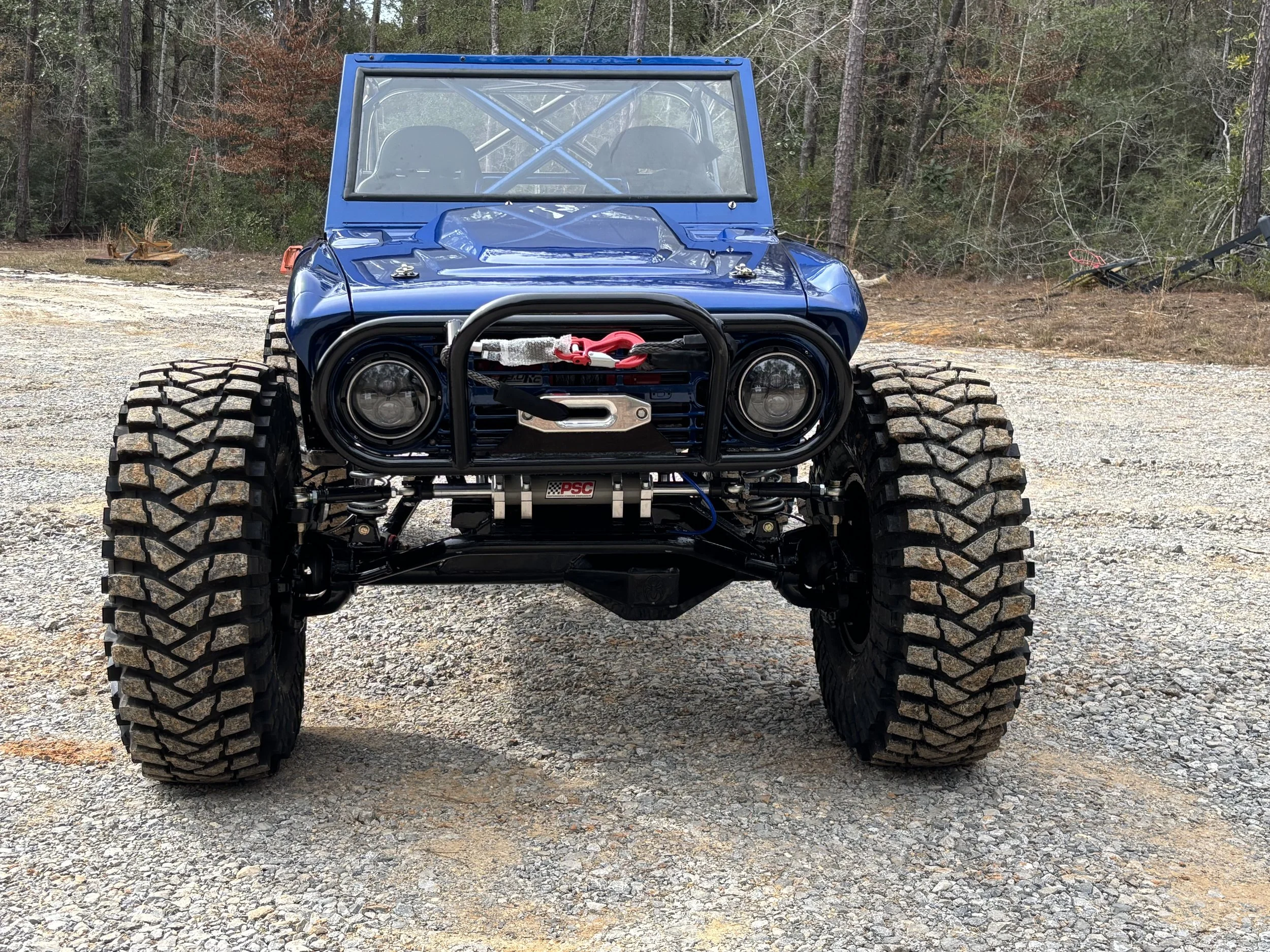

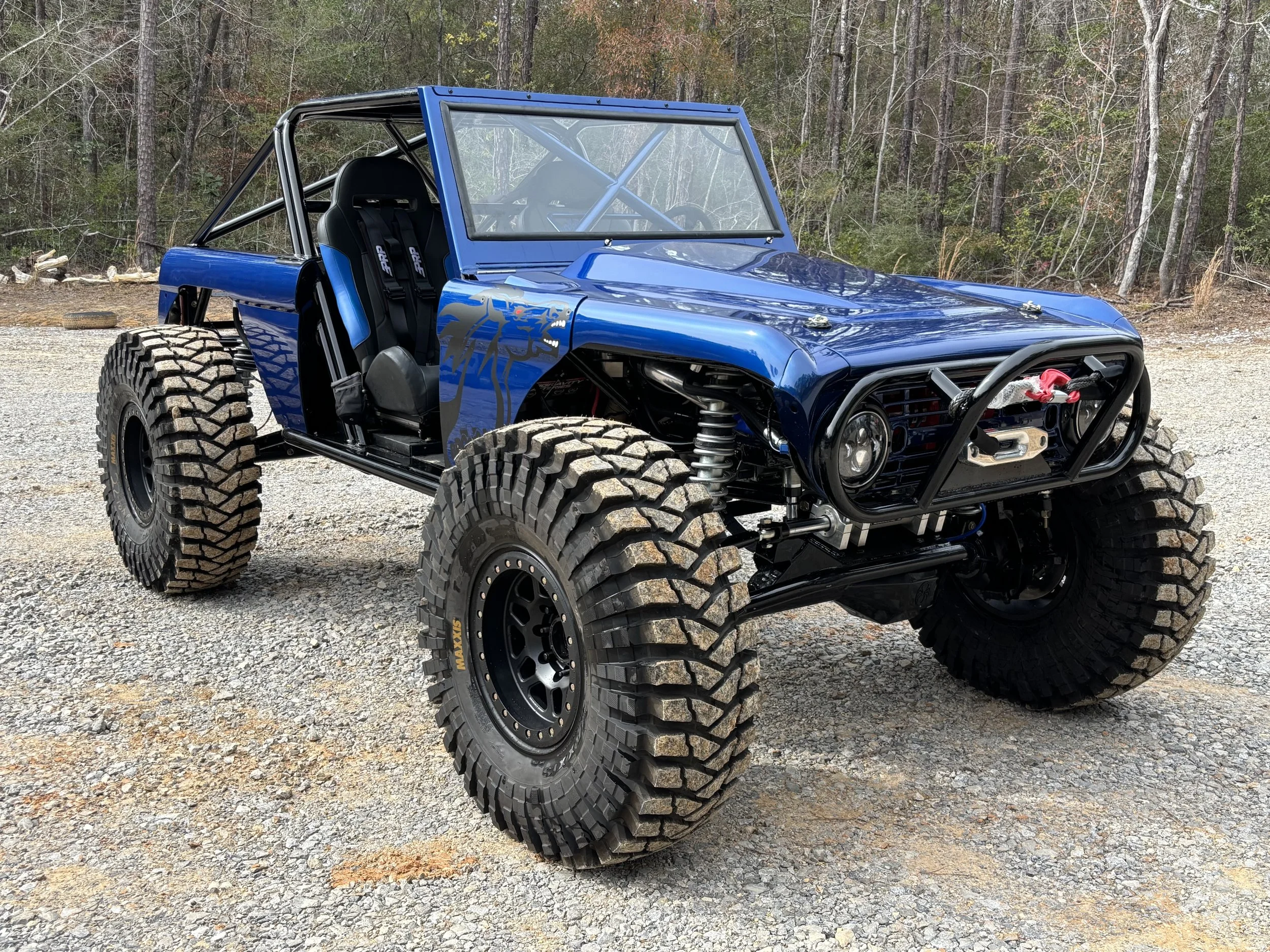

CLASSIC APPEARANCE, MODERN STRENGTH
Classic Appearance, Modern Strength
The windshield frame is constructed from square tubing to maintain the distinctive appearance of the factory Bronco windshield frame.
Unlike many custom tube chassis vehicles, the windshield retains the flat-sided profile of the original Bronco while functioning as a structural component of the roll cage.
This design preserves the classic appearance without sacrificing strength.

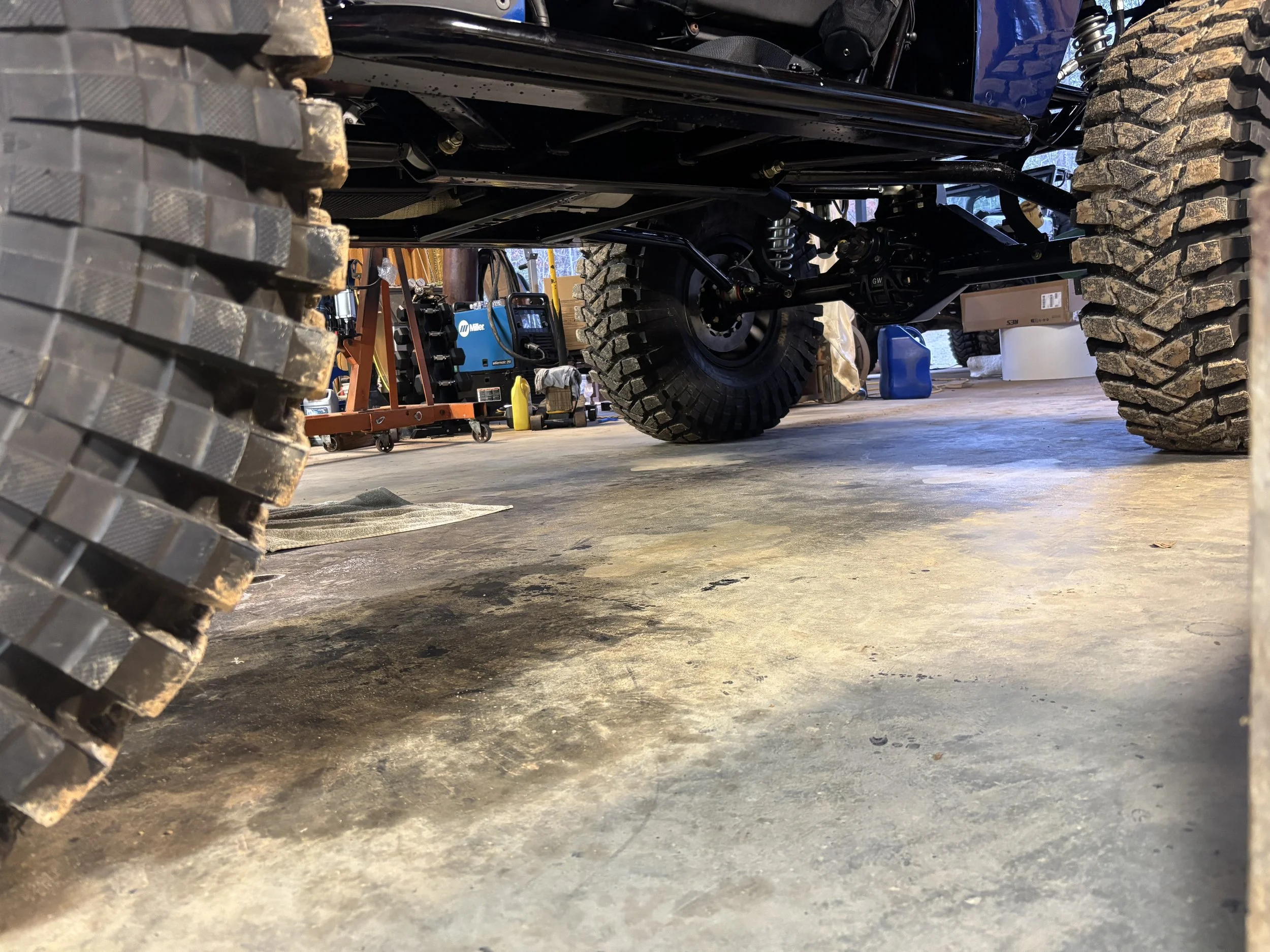

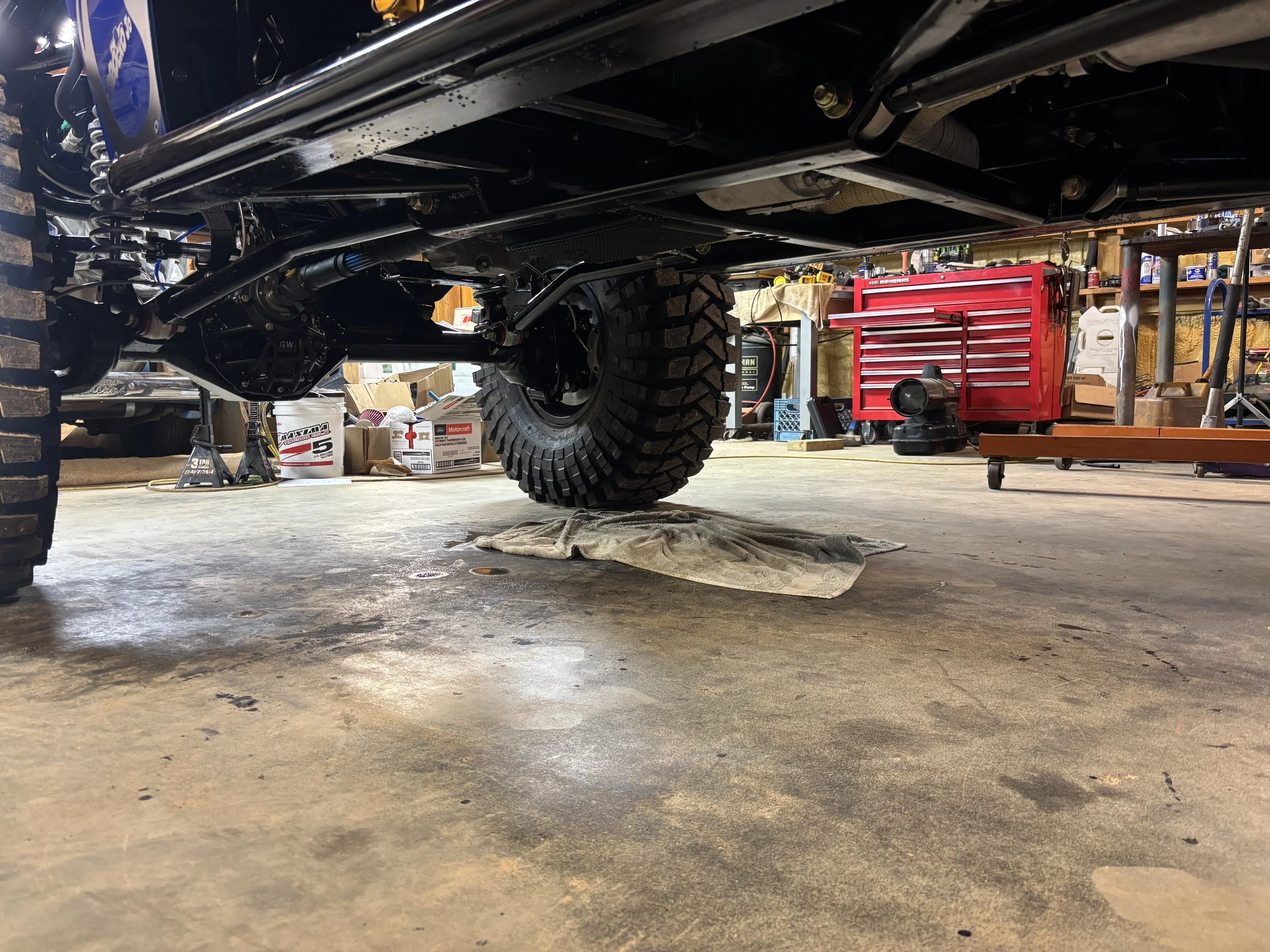

INTEGRATED LOWER LINK MOUNTS
Integrated Link Mount Design
Special attention was given to protecting suspension components from trail damage.
The frame sections where the lower links attach utilize 3x4 rectangular tubing, allowing the mounts to be integrated into the chassis rather than hanging below it.
Benefits include:
- Increased ground clearance
- Reduced rock hang-ups
- Improved durability
- Better obstacle clearance
This seemingly small detail has a significant impact when navigating difficult terrain.

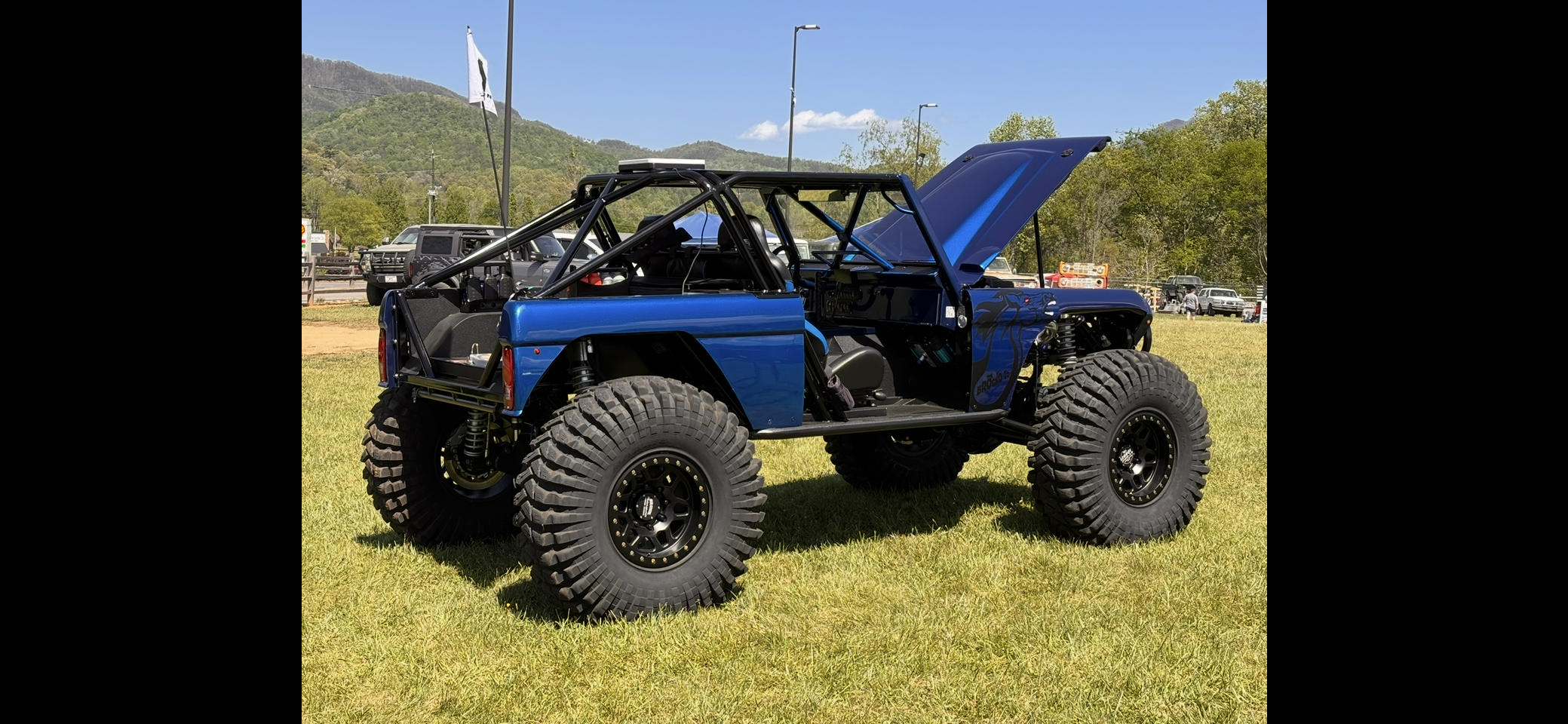

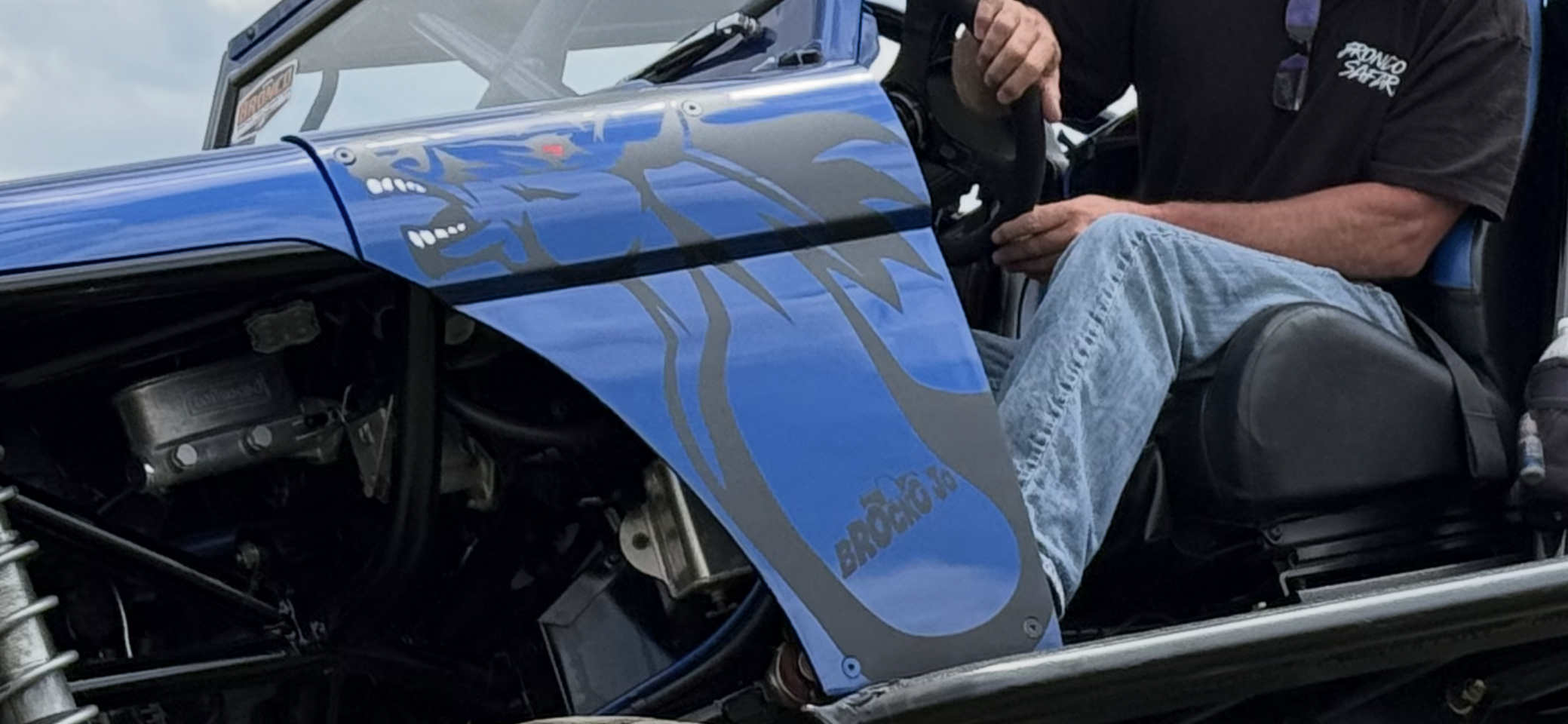

BODY ARMOR
REAR FENDER STRUCTURE
FRONT FENDER PROTECTION
3/16-Inch Steel Rear Fenders
The rear fenders are custom fabricated from 3/16-inch steel plate.
These components were designed to serve multiple purposes beyond simply functioning as body panels.
Benefits include:
- Body protection
- Structural reinforcement
- Impact resistance
- Trail durability
Rather than functioning solely as body panels, they contribute directly to the overall strength and durability of the vehicle.

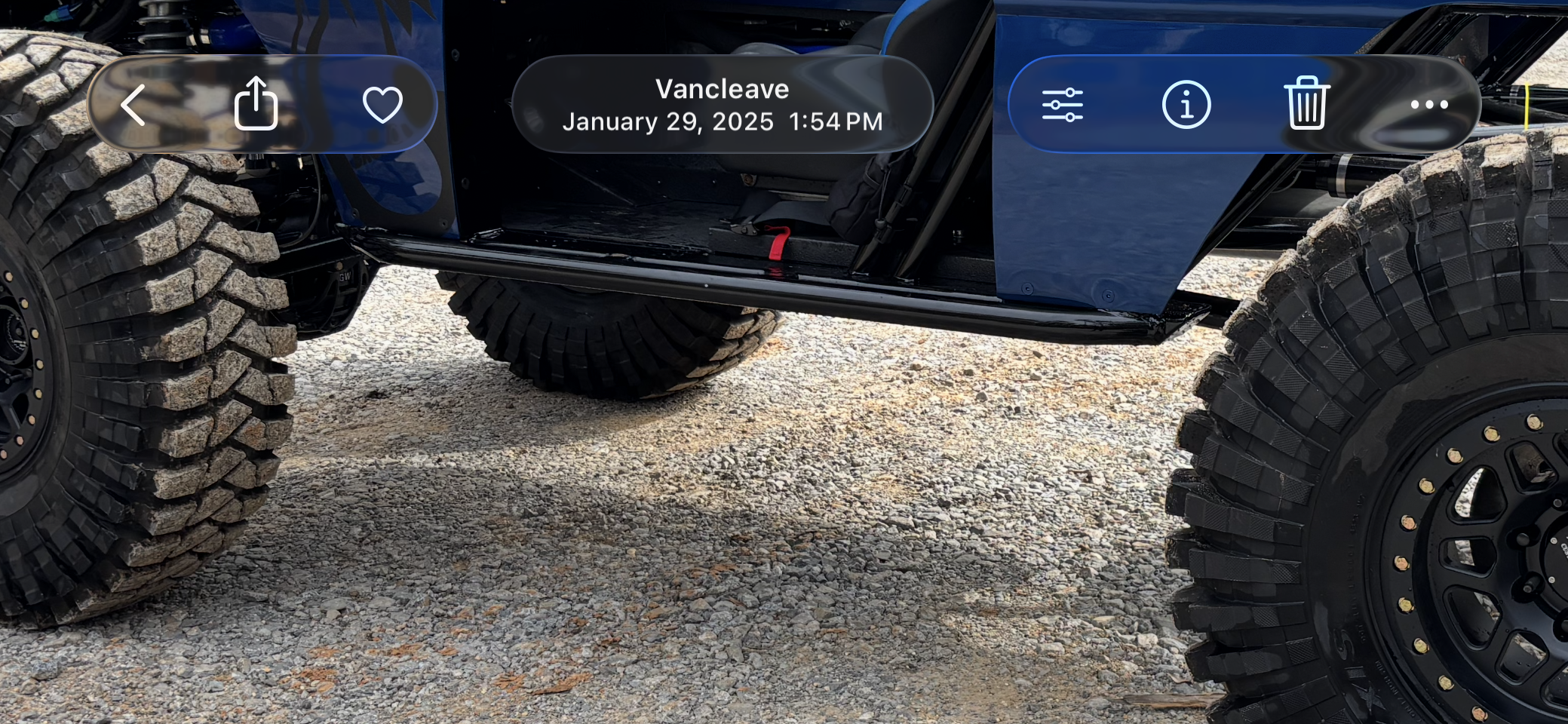

ROCK PROTECTION
HEAVY-DUTY ROCK
SLIDERS

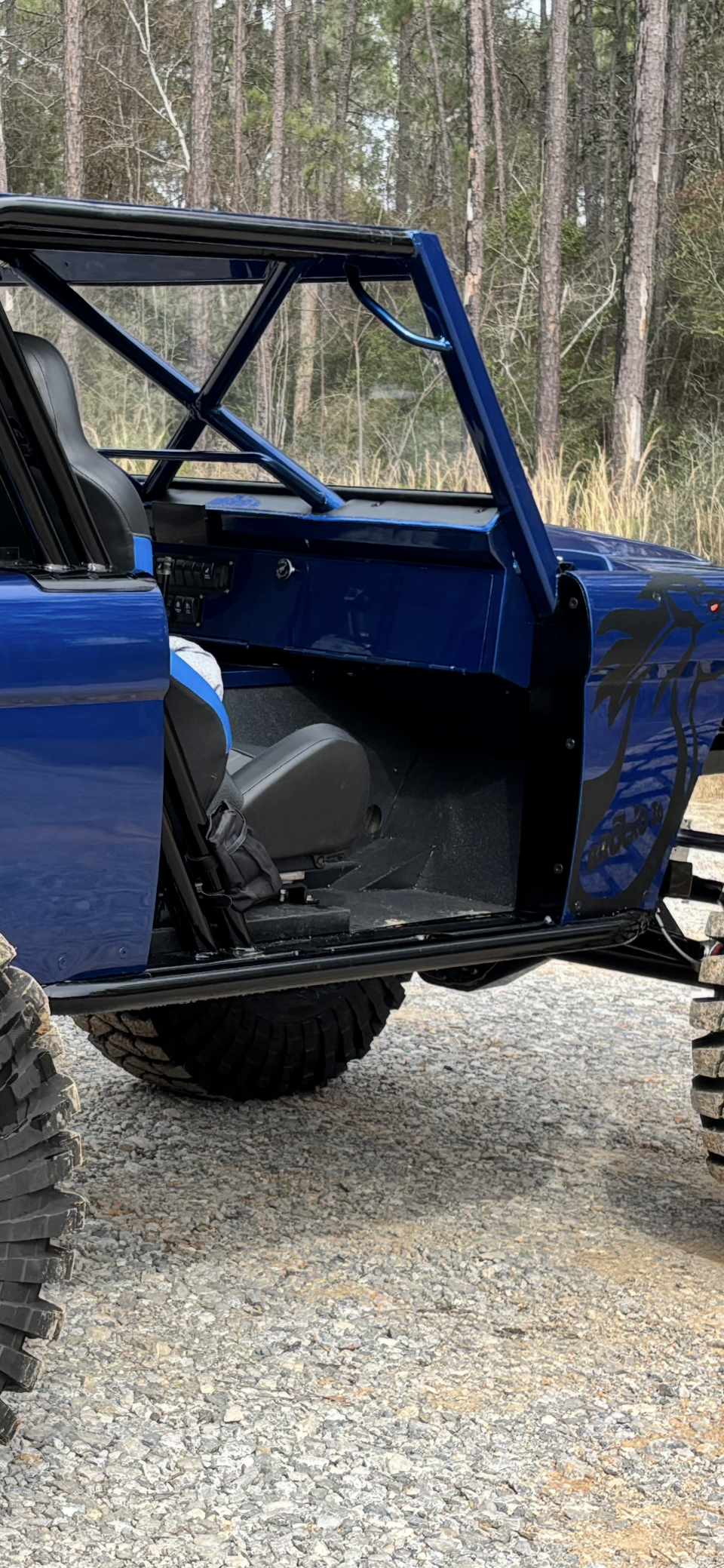

Heavy-Duty Rock Sliders
The rock sliders are built from 2-inch DOM tubing with a 1/4-inch wall thickness.
Designed to support the full weight of the vehicle, they provide critical protection when sliding across rocks and obstacles.
Benefits include:
- Chassis protection
- Body protection
- Improved obstacle navigation
- Increased durability
These components are intended to be used, not simply installed.
INTEGRATED SERVICE ACCESS

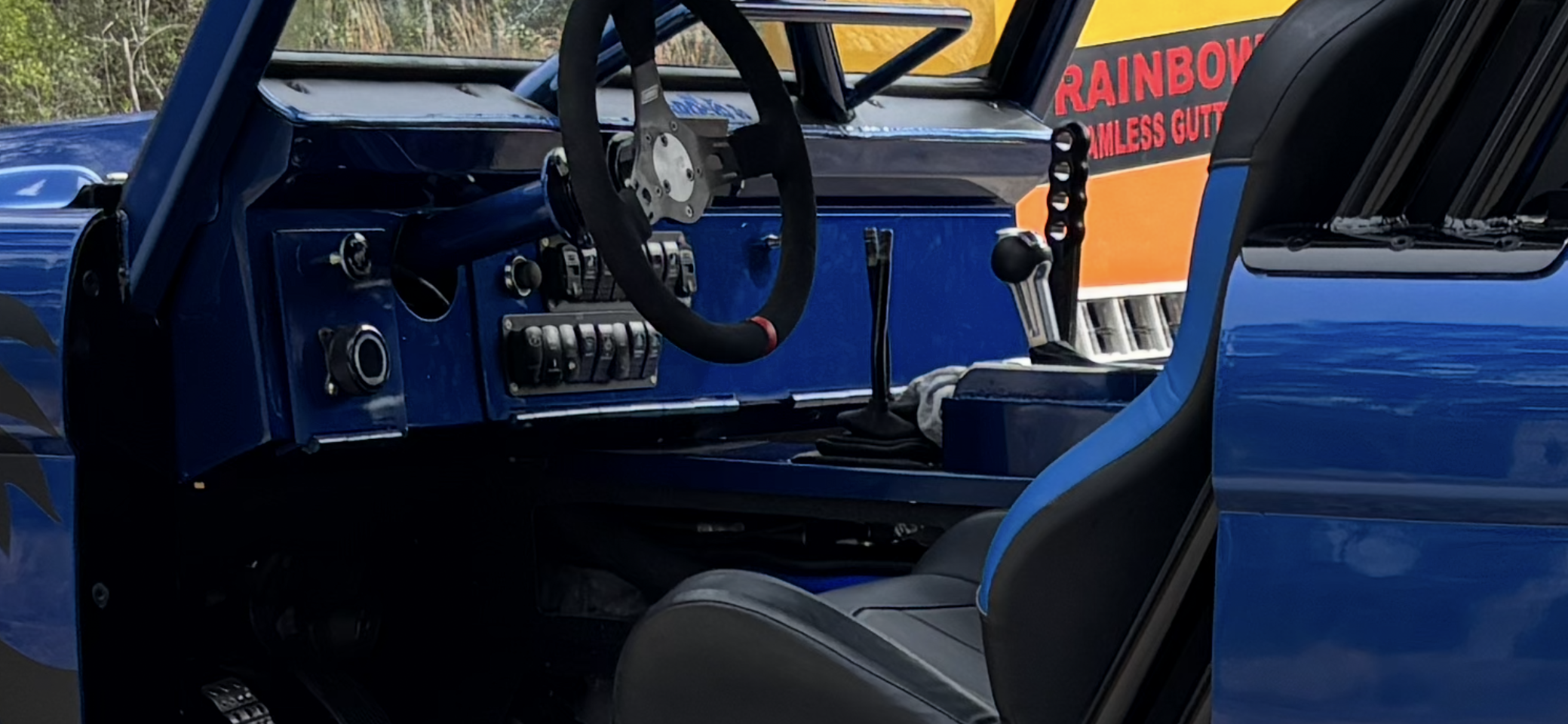

DASHBOARD ACCESS PANELS
Integrated Service Access Panels
Two hinged access panels are built directly into the dashboard.
These panels provide convenient access to:
- Fuse panels
- Relays
- Engine management systems
- Vehicle electronics
This eliminates the need to crawl underneath the dashboard for routine maintenance and troubleshooting.
ALUMINUM INTERIOR COMPONENTS

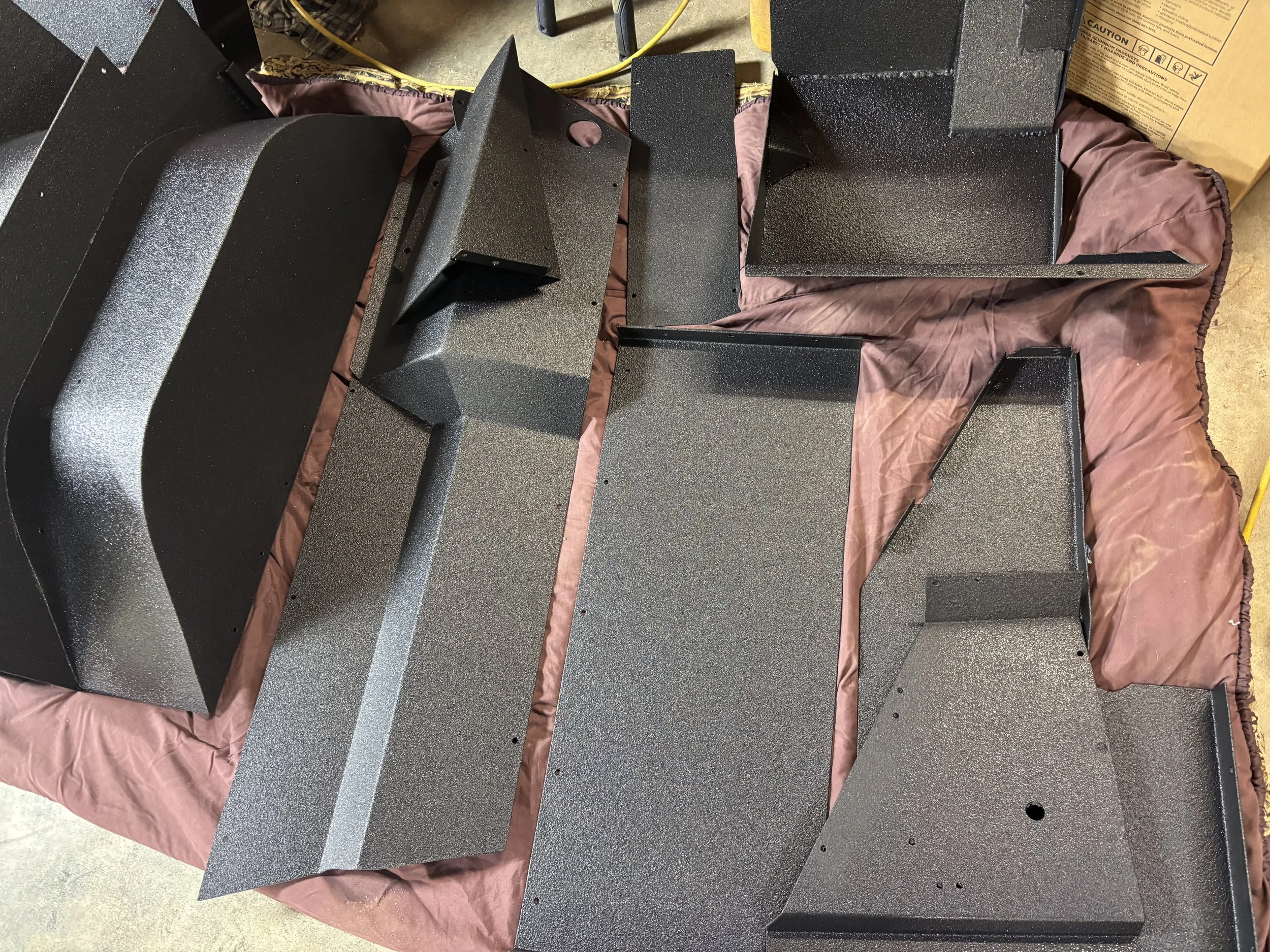

FLOOR PANS & TUNNEL COVERS

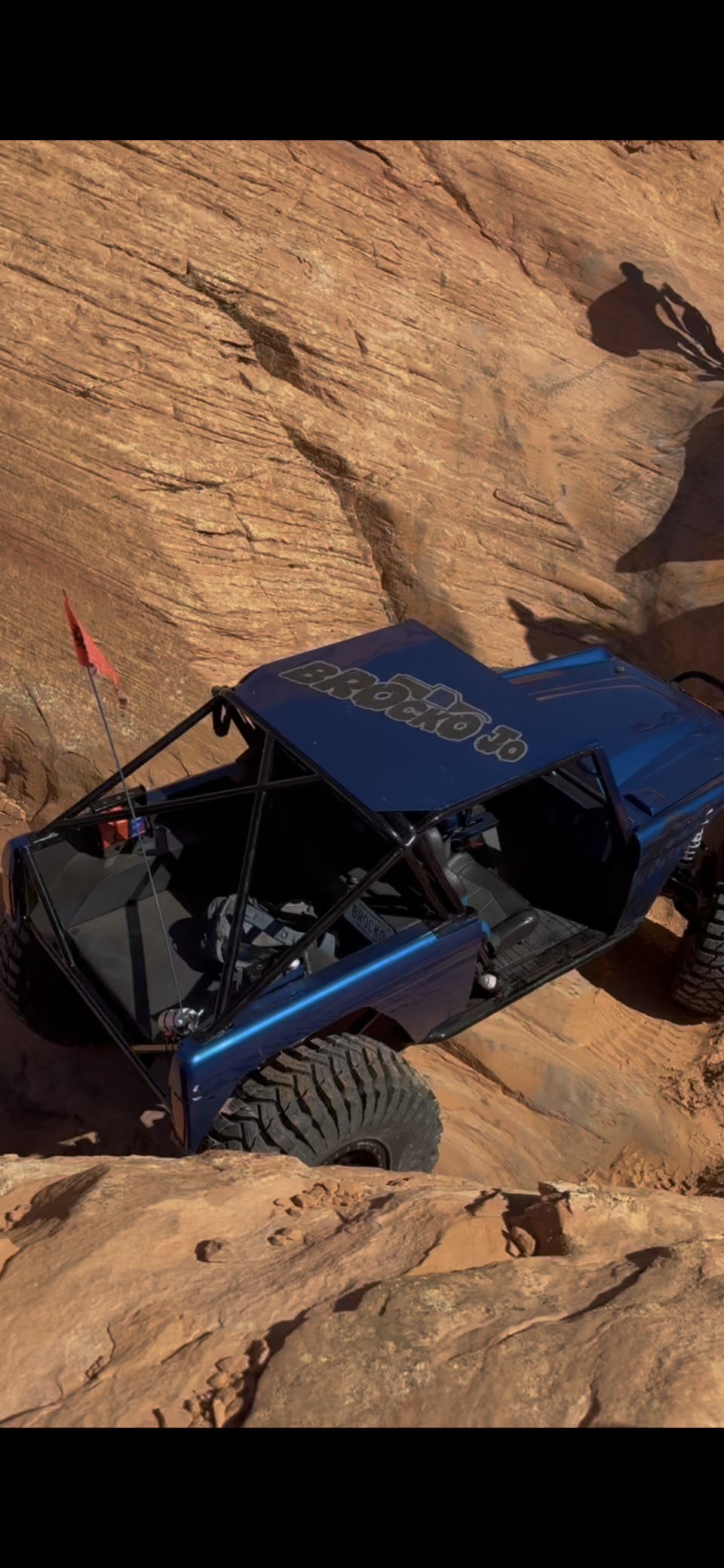

Aluminum Floor Pans & Tunnel Covers
All floor pans and tunnel covers are fabricated from aluminum and finished with Rhino Lining.
Benefits include:
- Reduced weight
- Corrosion resistance
- Easy maintenance
- Increased durability
The Rhino Lining finish provides additional protection while creating a clean, functional interior.
STORAGE SOLUTIONS

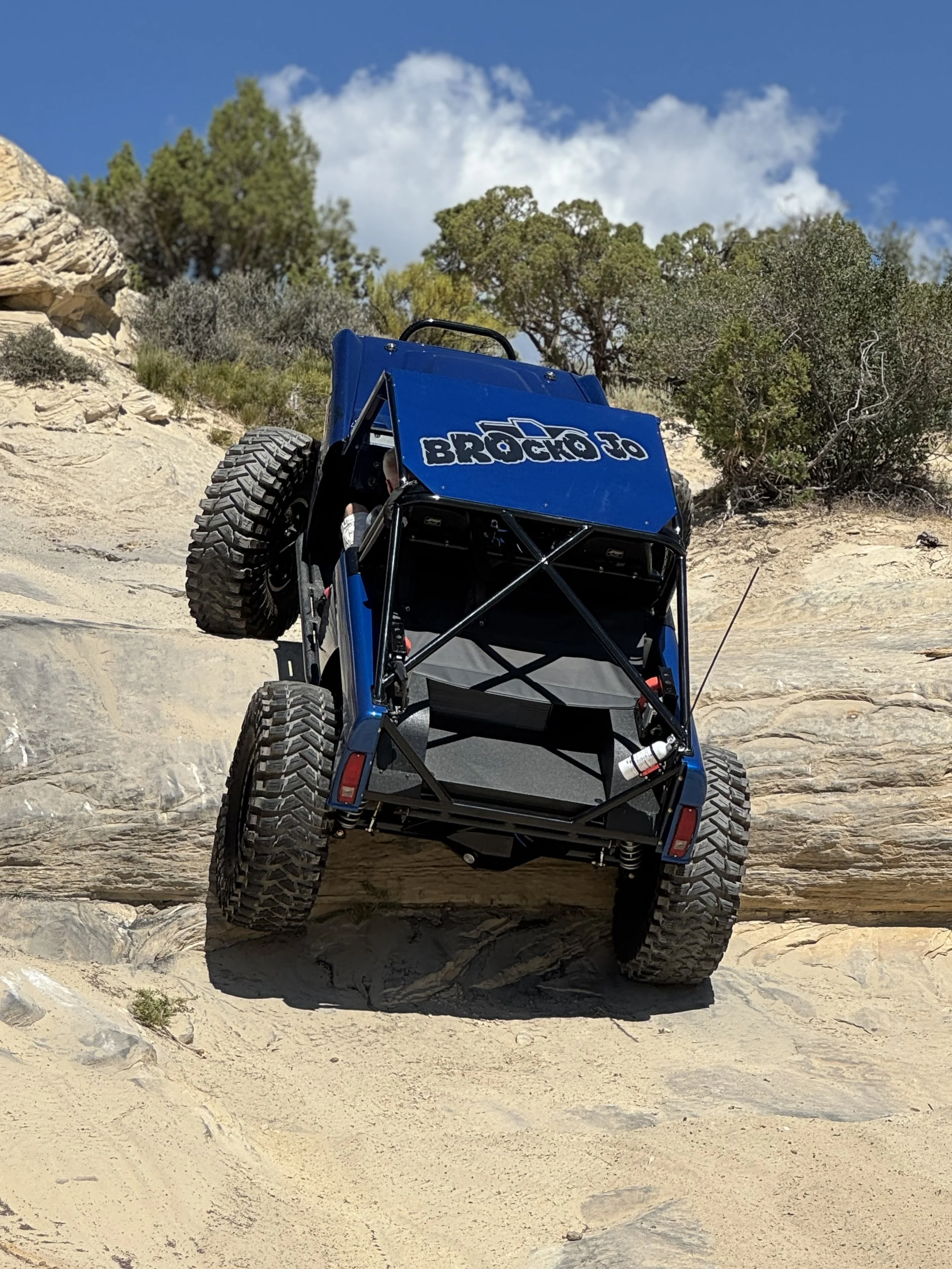

RECESSED REAR TOOLBOX

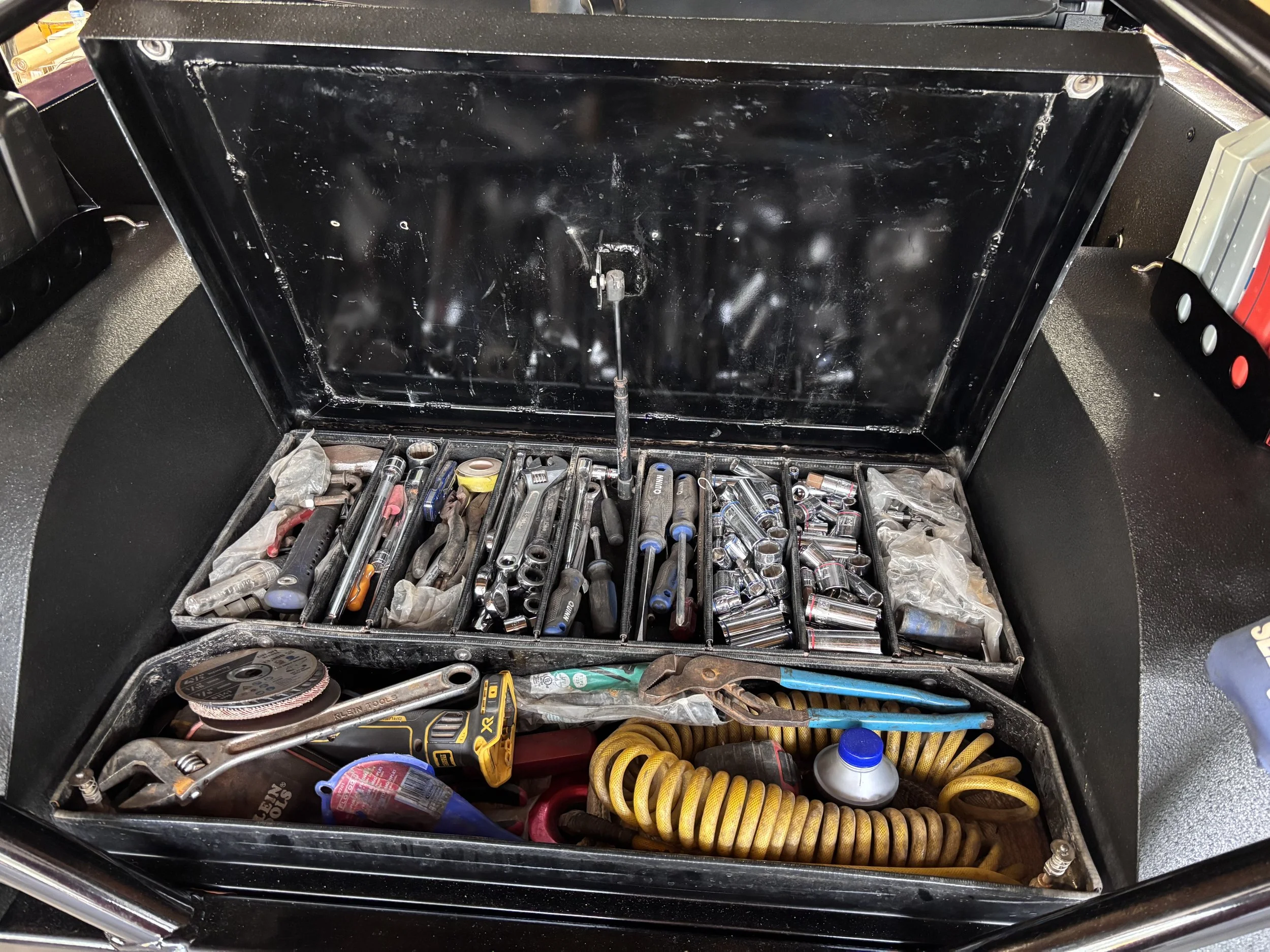

Integrated Rear Toolbox
The rear toolbox is fabricated from aluminum and recessed directly into the chassis structure.
By locating storage lower in the vehicle, weight is kept closer to the ground, helping maintain vehicle stability while maximizing usable storage space.
Benefits include:
- Lower center of gravity
- Increased storage capacity
- Weight reduction
- Improved organization
This design provides practical storage without compromising vehicle performance.

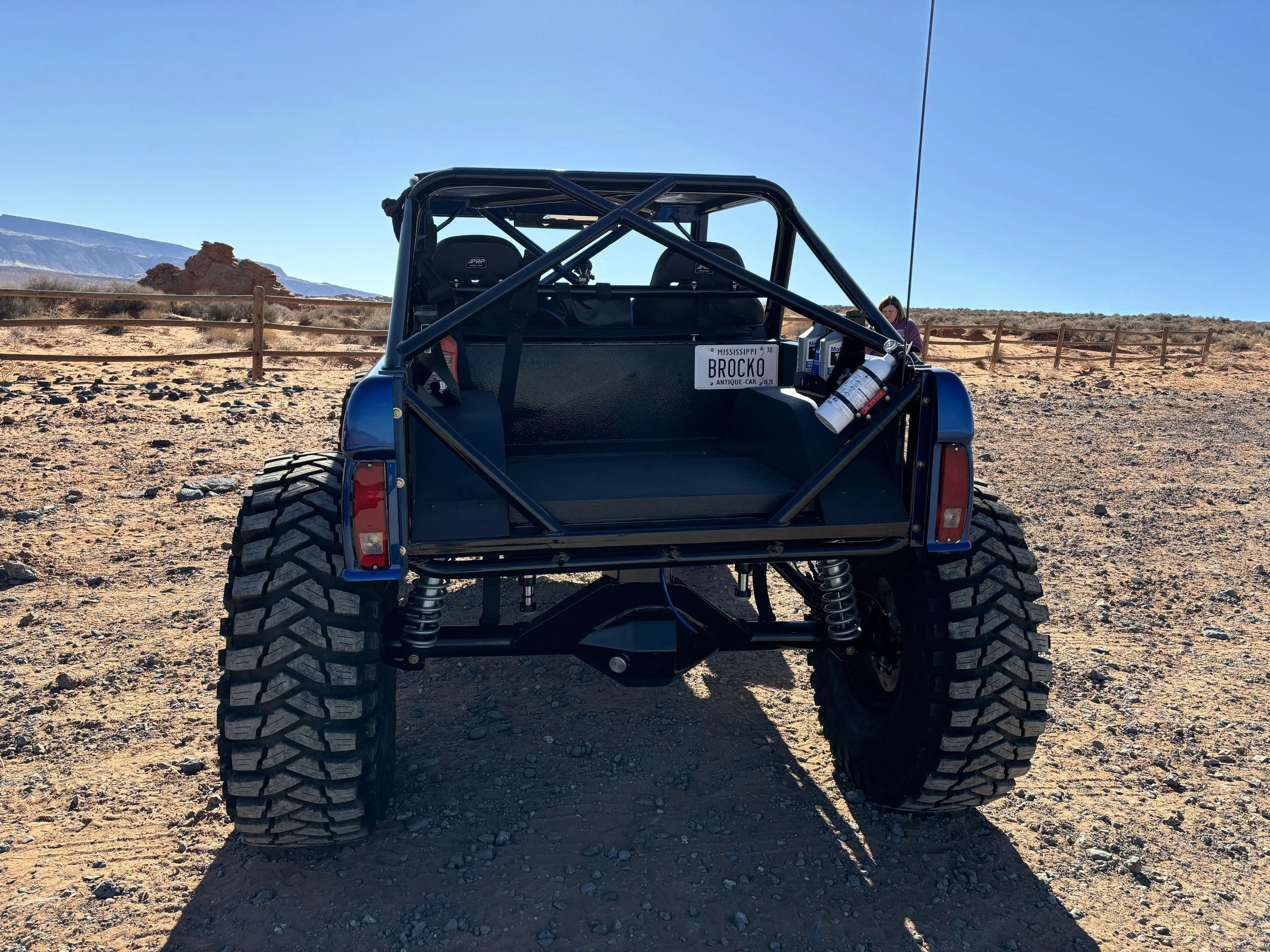

REAR UTILITY COMPARTMENT
INTEGRATED SYSTEMS COMPARTMENT

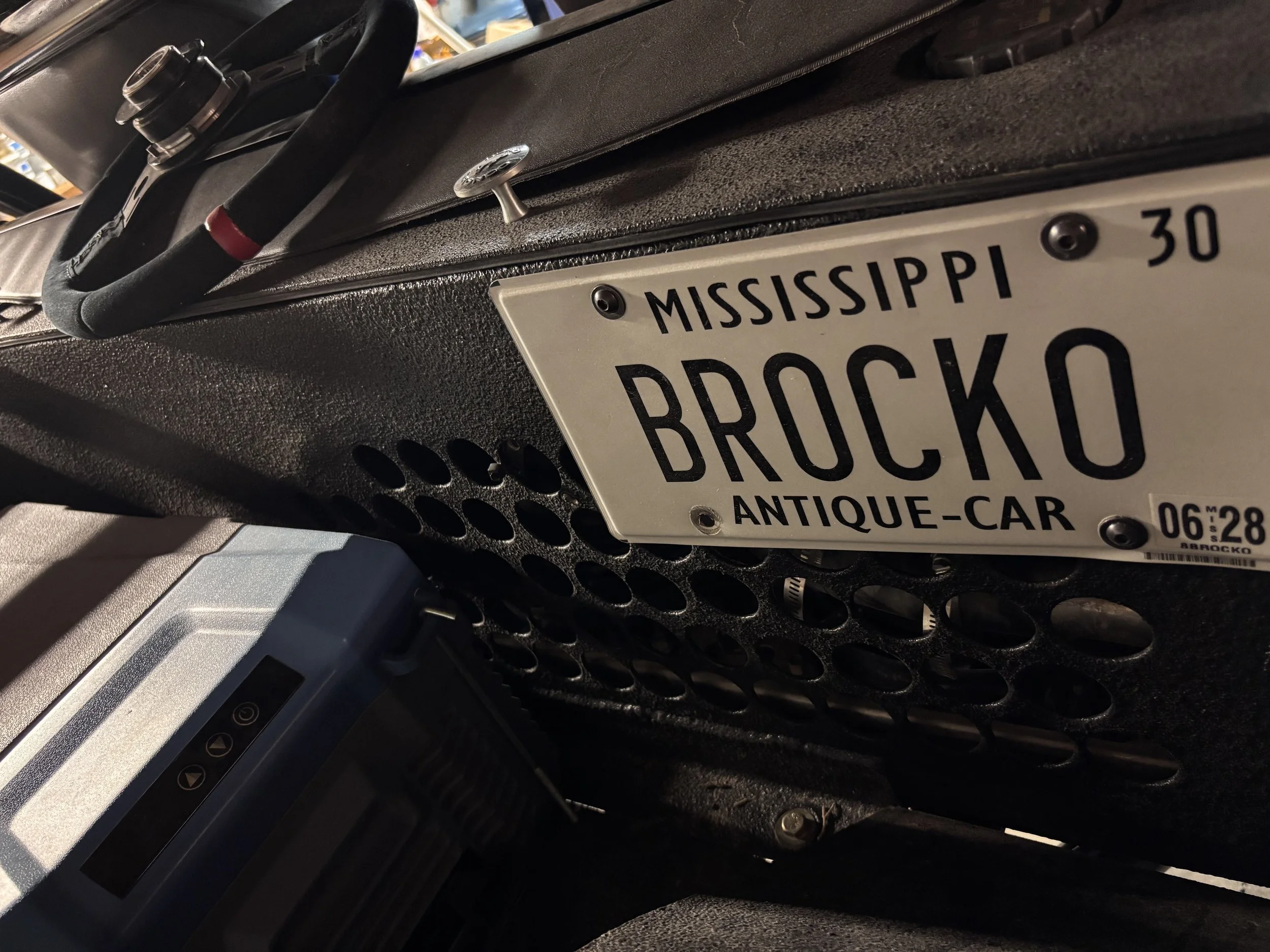

Integrated Systems Compartment
A custom enclosure located behind the seats houses several major vehicle systems in a single dedicated compartment.
Contained within this compartment are:
- Fuel tank
- Radiator
- Auxiliary electric water pump
- Vent canisters
This arrangement provides several advantages:
- Cleaner appearance
- Improved packaging
- Better weight distribution
- Simplified maintenance
Consolidating these systems into a dedicated compartment helps keep the vehicle organized, serviceable, and optimized for performance.

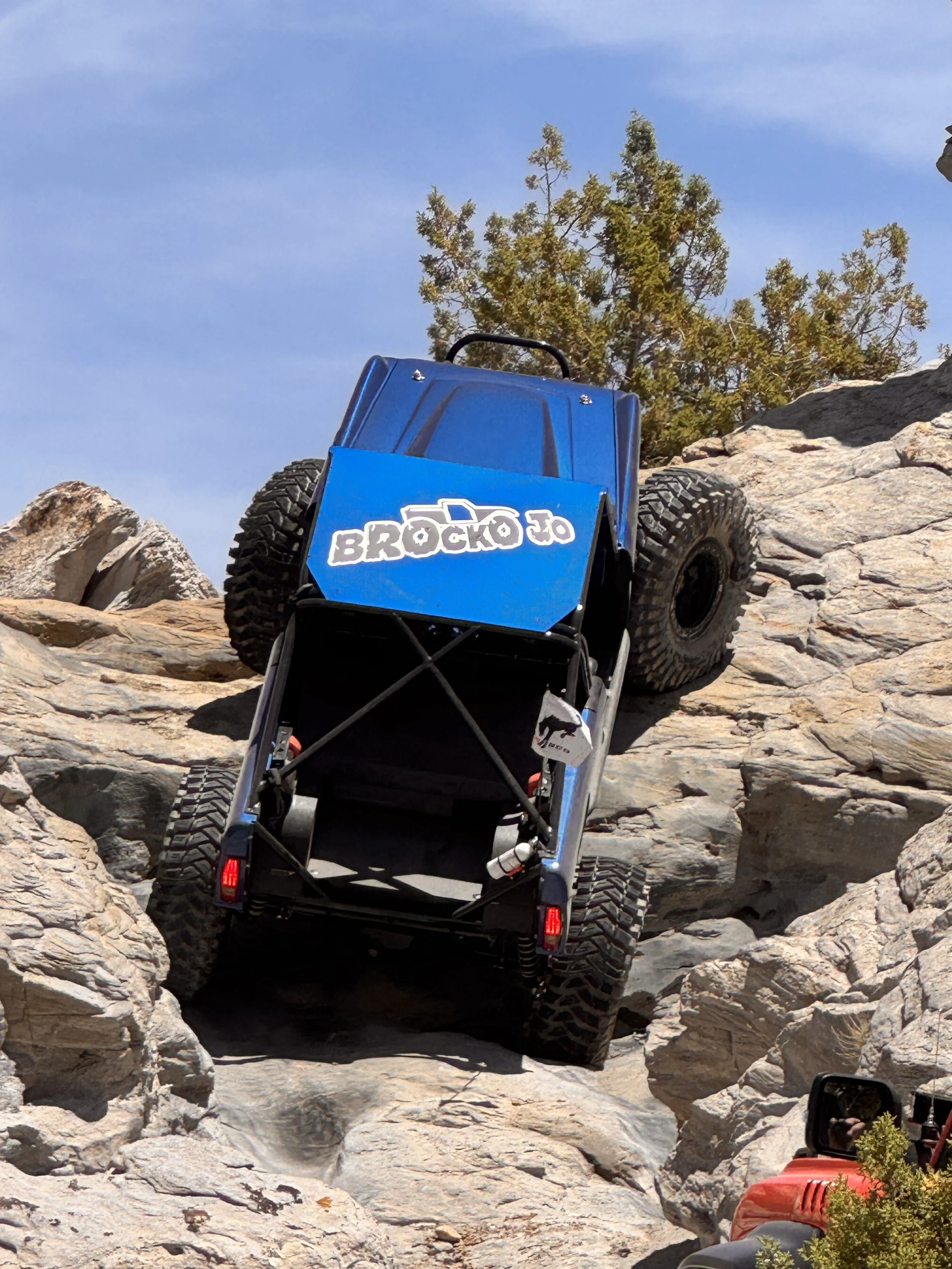

ROOF SYSTEM

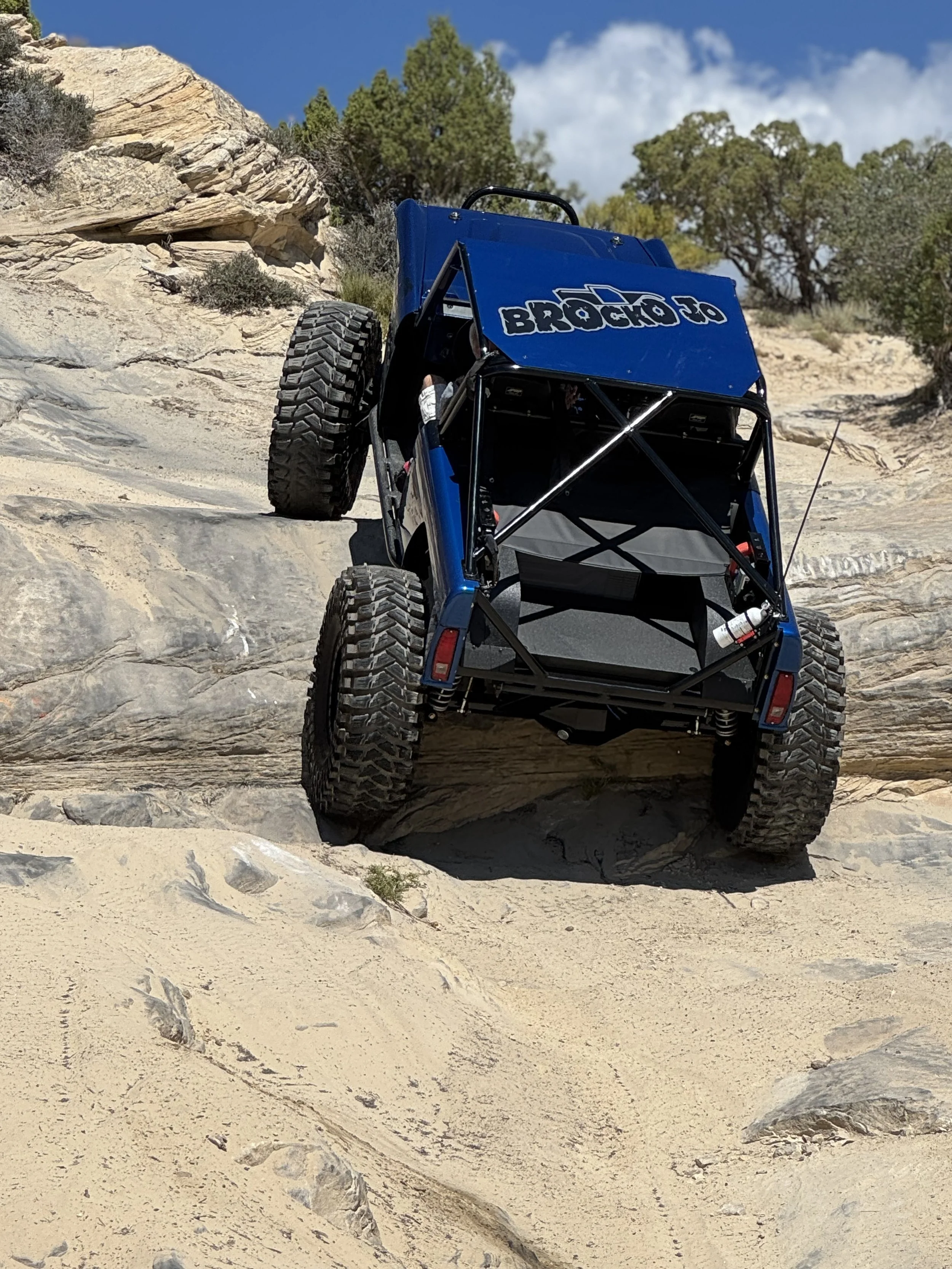

CUSTOM ALUMINUM ROOF PANEL
Custom Aluminum Roof Panel
The roof panel is formed from 1/8-inch aluminum, providing a lightweight and durable solution that complements the overall chassis design.
Benefits include:
- Reduced weight
- Corrosion resistance
- Structural rigidity
The roof also incorporates the BrockoJo logo, creating a unique visual signature that helps distinguish the build while reinforcing its custom identity.
WINDSHIELD COMPATIBILITY
OEM-COMPATIBLE WINDSHIELD DESIGN
OEM-Compatible Windshield Design
Although the chassis is fully custom, the windshield was designed to accommodate a stock classic Bronco windshield gasket with minimal modifications.
Benefits include:
- Easier replacement
- Improved parts availability
- Reduced maintenance costs
- OEM-style sealing
This reflects the overall philosophy of combining custom fabrication with readily available service parts whenever possible, making the vehicle easier to maintain and support long-term.
SAFETY FEATURES

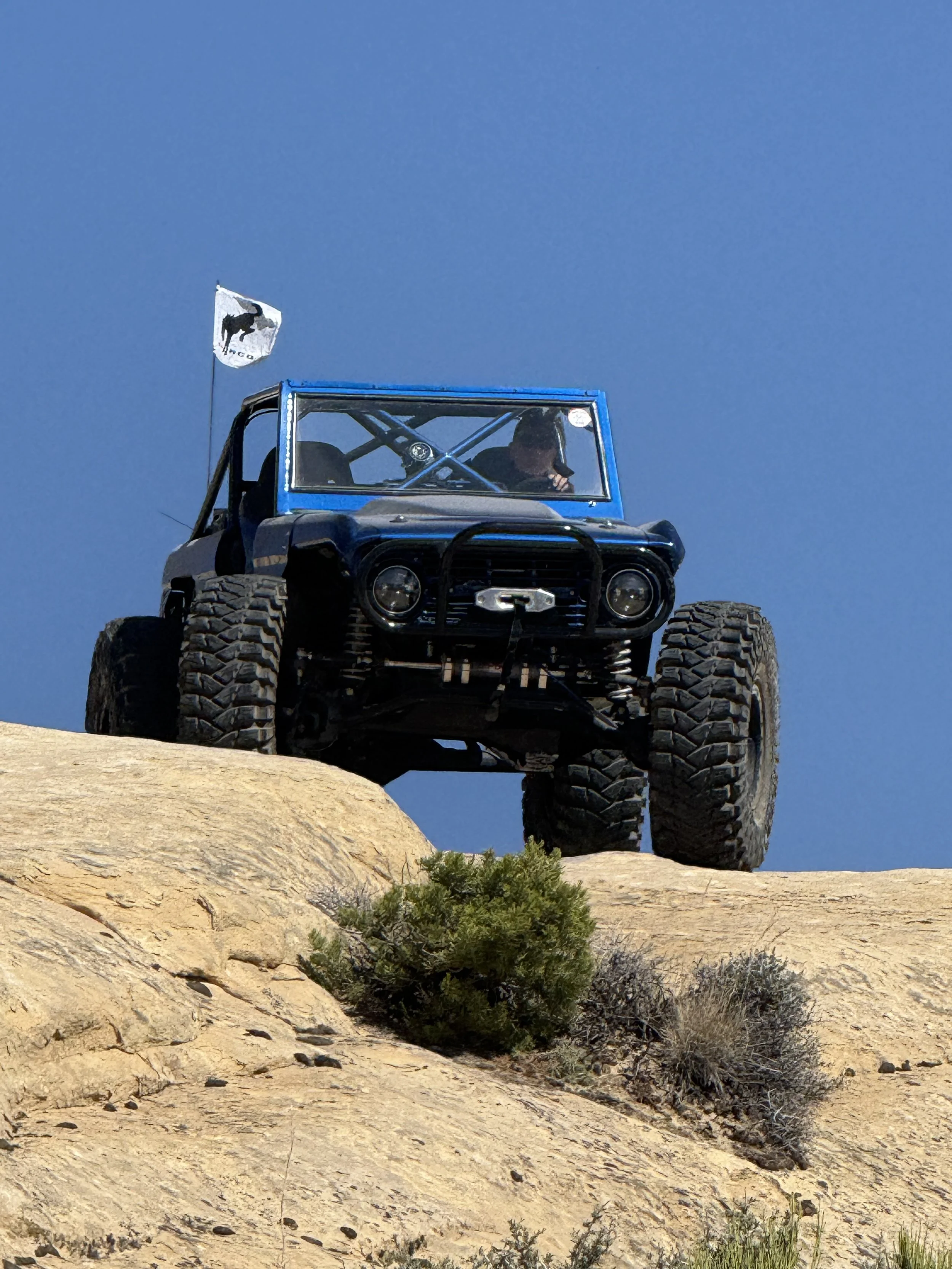

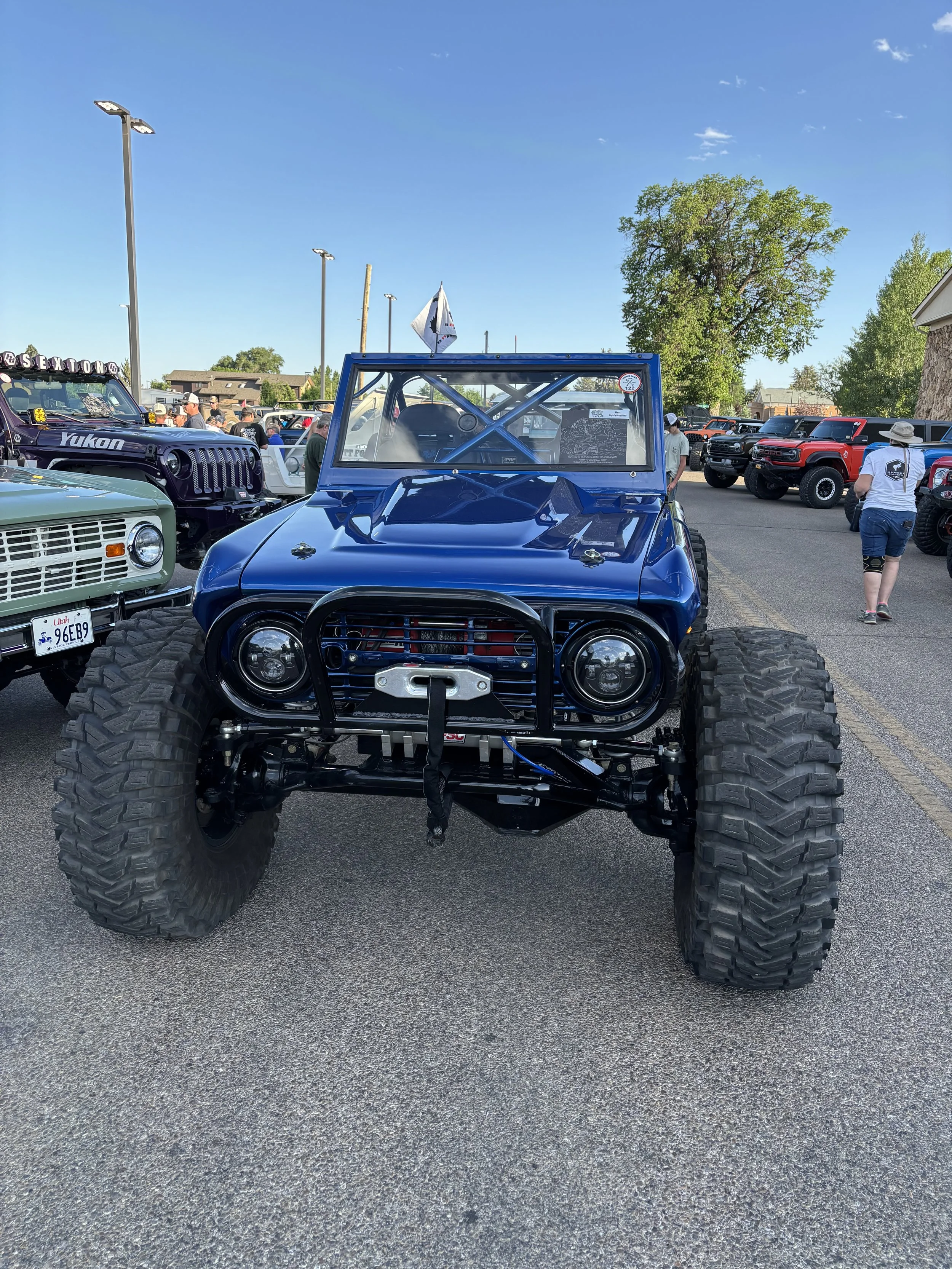

INTEGRATED FRONT STINGER
Integrated Front Stinger
A front stinger is built directly into the front bumper structure.
While it contributes to the aggressive appearance of the vehicle, its primary purpose is protection.
Benefits include:
- Additional rollover protection
- Front-end impact protection
- Improved obstacle deflection
- Increased chassis protection
The integrated design helps protect critical vehicle components while improving survivability in challenging off-road environments.
SEATING & OCCUPANT COMFORT

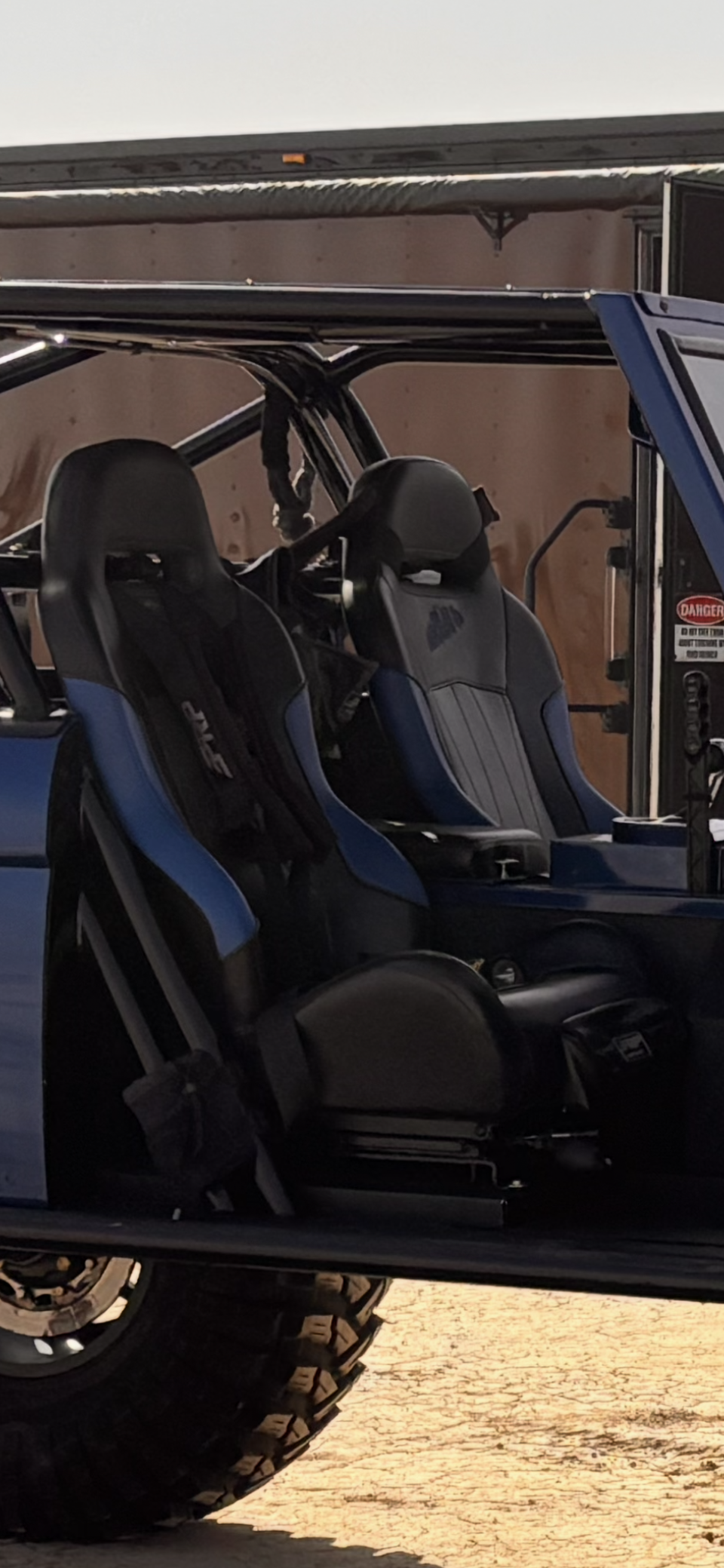

PRP SUSPENSION SEATS

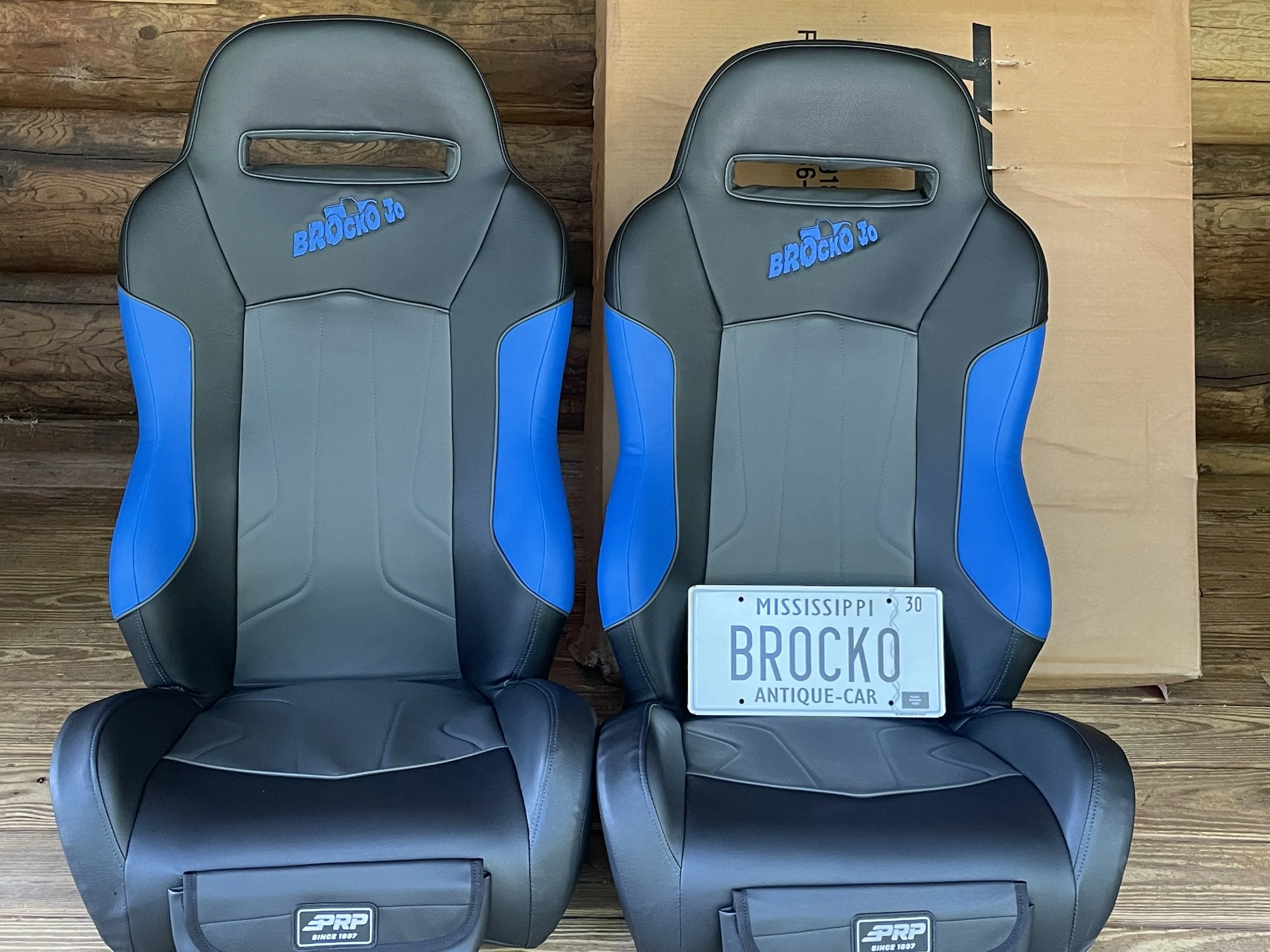

PRP Suspension Seats
The interior features premium PRP suspension seats designed to provide both comfort and performance during extended trail rides and demanding off-road conditions.
Features include:
- Integrated seat heaters
- Adjustable lumbar support
- Front storage bags
- Long-distance comfort
These seats help reduce driver fatigue while providing the support and comfort needed for both technical crawling and extended adventures.
PRP Racing Harnesses
Occupants are secured using PRP racing seat belts designed to provide superior restraint during aggressive off-road driving.
The combination delivers comfort on the trail while maintaining the safety expected from a purpose-built off-road vehicle.
COMPONENT SPECIFICATIONS
COMPLETE CHASSIS OVERVIEW
Complete Chassis Overview
The chassis serves as the foundation of the entire build, combining classic Bronco styling with modern engineering, optimized suspension geometry, exceptional durability, and thoughtful serviceability.
Chassis
- Full Custom Chassis
- .120 Wall DOM Construction
- Integrated Roll Cage
Body Structure
- Classic Bronco Fender Profiles
- Classic Bronco Grille
- Classic Bronco Headlights
- Classic Bronco Taillights
- Factory Windshield Angle & Taper
Frame
- 3x4 Integrated Lower Link Mount Sections
- Optimized Suspension Geometry
Armor
- 3/16" Rear Fender Armor
- 3/16" Front Fender Armor
- 2" x 1/4" Wall DOM Rock Sliders
Interior
- Aluminum Floor Pans
- Aluminum Tunnel Covers
- Rhino Lined Interior
- Recessed Aluminum Toolbox
Utility Systems
- Rear Mounted Fuel Tank
- Rear Mounted Radiator
- Auxiliary Electric Water Pump
- Vent Canister System
Roof
- 1/8" Aluminum Roof Panel
- Integrated BrockoJo Logo
Safety
- Integrated Roll Cage
- Front Stinger Protection
- PRP Racing Harnesses
Seating
- PRP Suspension Seats
- Seat Heaters
- Lumbar Support
- Integrated Storage Bags
Every component was selected to support the overall goals of the build: capability, durability, serviceability, weight reduction, and maintaining the timeless appearance of the classic Bronco.
Rear Utility Compartment
Roof System
Interior Construction
Classic Bronco Inspired Dashboard
The dashboard was designed to resemble the original Bronco dash while incorporating modern functionality.
Maintaining the classic appearance was important, but serviceability was equally important.

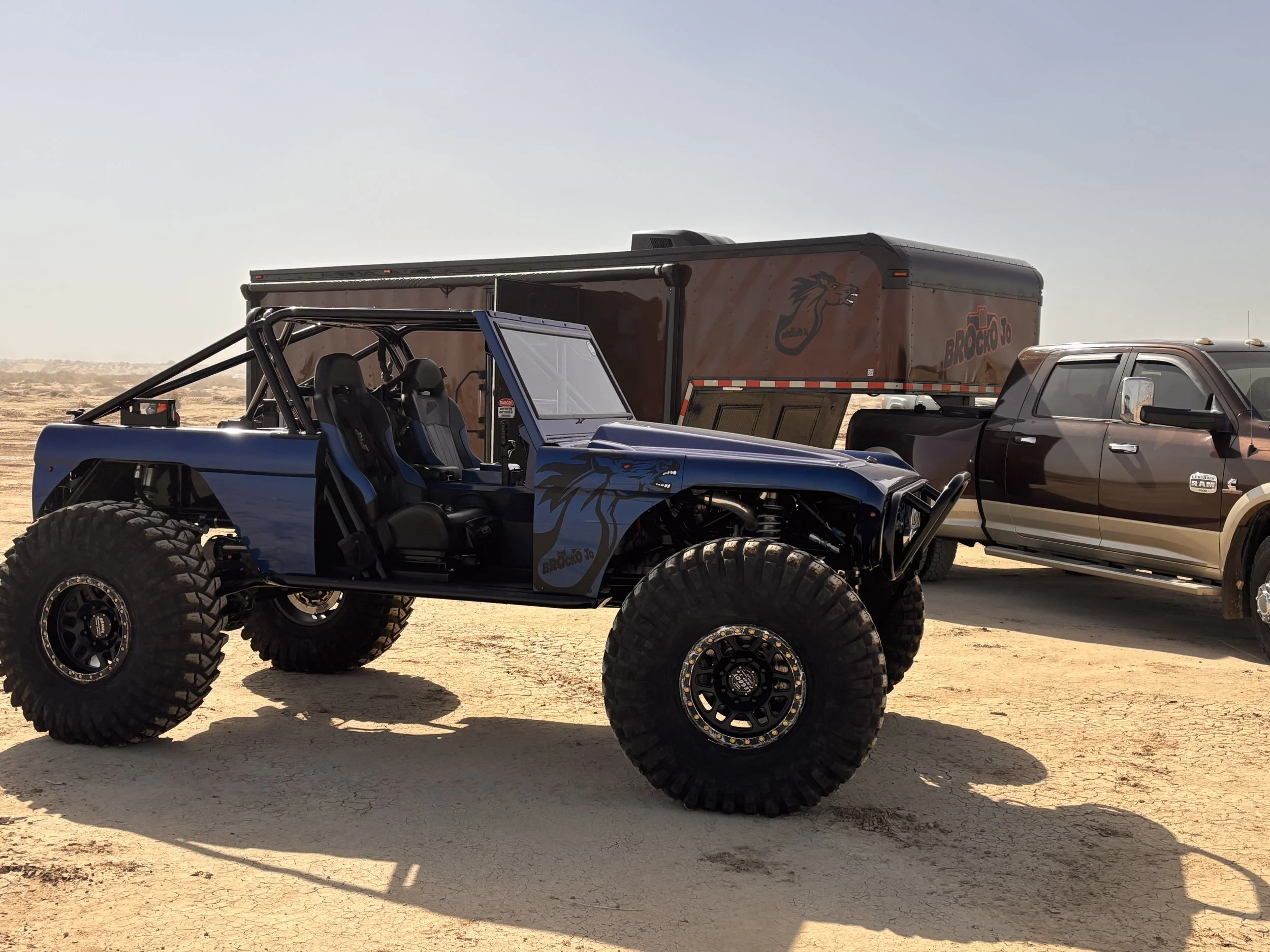

DESIGN PHILOSOPHY

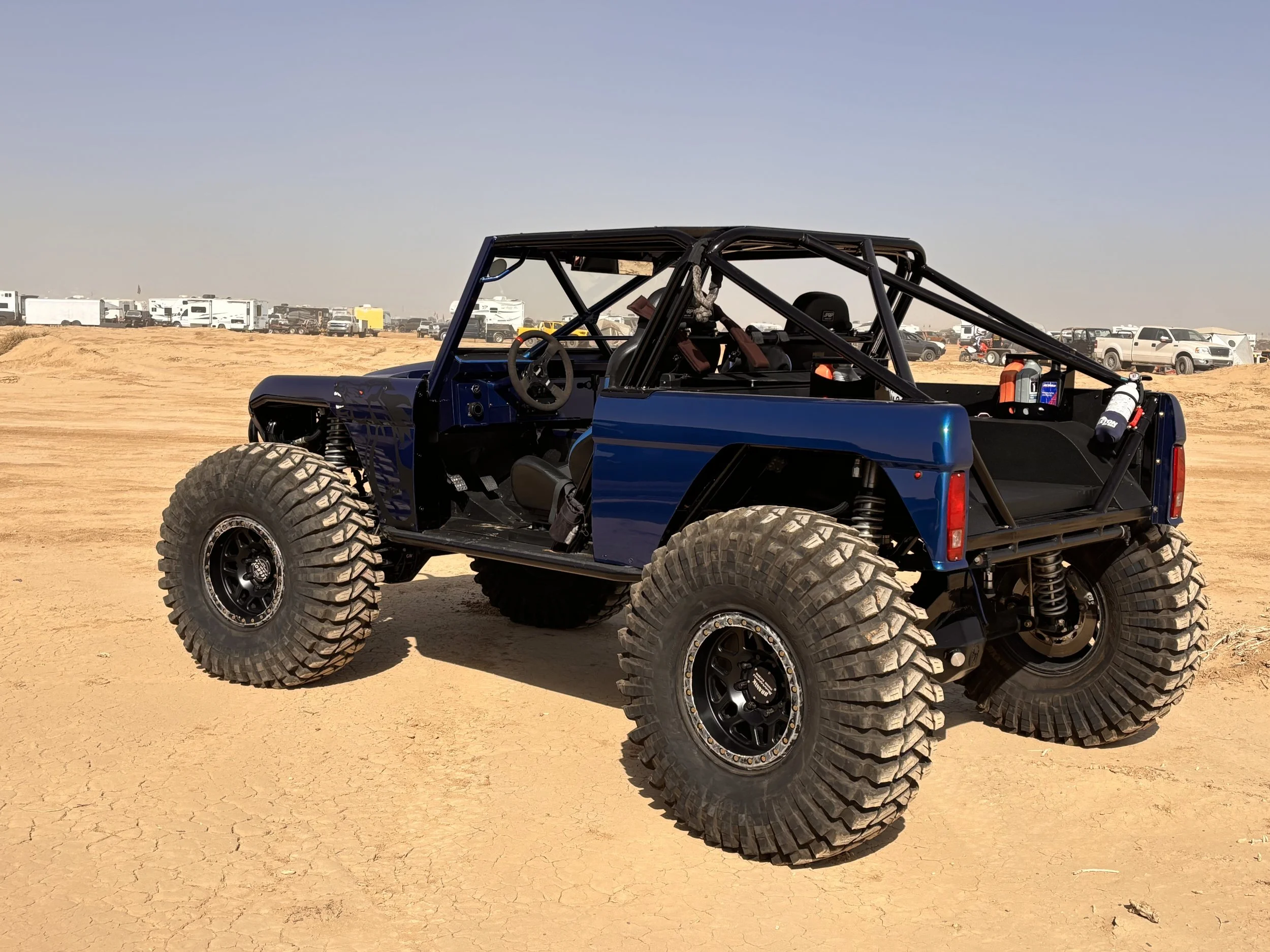

Chassis Design Philosophy
The chassis was designed around two primary goals: preserving the iconic appearance of the classic Bronco while maximizing performance, durability, and serviceability.
By starting with a completely custom chassis, every component could be positioned exactly where it needed to be. Suspension mounting points, drivetrain packaging, storage solutions, and safety systems were all engineered from the ground up rather than being constrained by factory frame geometry.
Throughout the build, significant effort was made to preserve the classic Bronco appearance. The original fender profiles, grille, headlights, taillights, windshield angle, and windshield taper remain instantly recognizable while concealing a modern purpose-built off-road chassis underneath.
The result is a vehicle that maintains the timeless look of the original Bronco while delivering modern performance, capability, and reliability.
